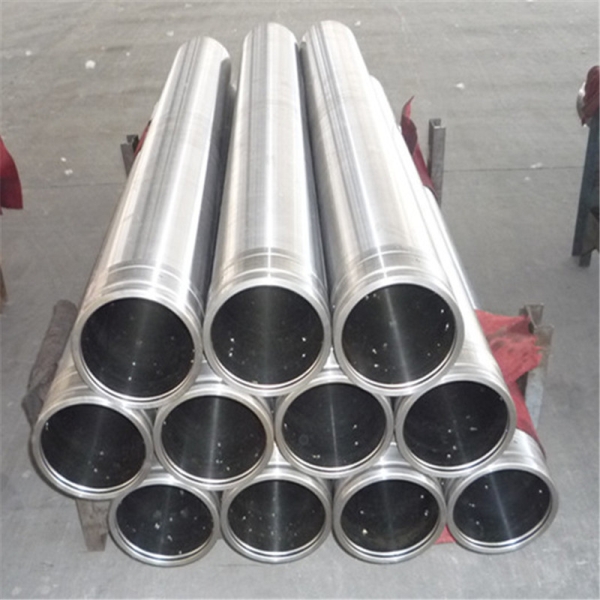

油缸管
|
精密無縫鋼管規(guī)格型號參數一覽表 |
|||||
|
內徑mm |
壁厚mm |
單重kg/m |
內徑mm |
壁厚mm |
單重kg/m |
|
32 |
4 |
3.55 |
110 |
9 |
26.41 |
|
40 |
2.5 |
2.62 |
110 |
11.5 |
34.46 |
|
40 |
5 |
5.55 |
110 |
12.5 |
37.76 |
|
40 |
5.5 |
6.17 |
110 |
15 |
46.24 |
|
45 |
4 |
4.83 |
120 |
10 |
32.06 |
|
45 |
5 |
6.17 |
120 |
13 |
42.64 |
|
45 |
6 |
7.55 |
125 |
4 |
12.72 |
|
45 |
7.5 |
9.71 |
125 |
5 |
16.03 |
|
50 |
2.5 |
3.24 |
125 |
7.5 |
24.51 |
|
50 |
4 |
5.33 |
125 |
10.5 |
35.09 |
|
50 |
5 |
6.78 |
125 |
13.5 |
46.11 |
|
50 |
6.5 |
9.06 |
125 |
17 |
59.53 |
|
50 |
7.5 |
10.63 |
130 |
11 |
38.25 |
|
50 |
10 |
14.8 |
130 |
13 |
45.84 |
|
55 |
5 |
7.4 |
140 |
6 |
21.6 |
|
55 |
7.5 |
11.56 |
140 |
9.5 |
35.02 |
|
56 |
6 |
9.17 |
140 |
12 |
44.98 |
|
56 |
7 |
10.88 |
140 |
14 |
53.17 |
|
60 |
5 |
8.01 |
150 |
5 |
19.11 |
|
63 |
3.5 |
5.74 |
150 |
9 |
35.29 |
|
63 |
4.5 |
7.49 |
150 |
15 |
61.03 |
|
63 |
6.5 |
11.14 |
160 |
5 |
20.34 |
|
63 |
8.5 |
14.99 |
160 |
10 |
41.92 |
|
63 |
10 |
18 |
160 |
17 |
74.2 |
|
70 |
6.5 |
12.26 |
180 |
6 |
27.52 |
|
70 |
8 |
15.39 |
180 |
7 |
32.28 |
|
75 |
5.5 |
10.92 |
180 |
11.5 |
54.31 |
|
80 |
3 |
6.14 |
180 |
19.5 |
95.93 |
|
80 |
6 |
12.73 |
200 |
6.5 |
33.1 |
|
80 |
7.5 |
16.18 |
200 |
8 |
41.03 |
|
80 |
11 |
24.68 |
200 |
9.5 |
49.08 |
|
90 |
5 |
11.71 |
200 |
22.5 |
123.45 |
|
90 |
6.5 |
15.47 |
220 |
12.5 |
71.67 |
|
90 |
7.5 |
18.03 |
220 |
26.5 |
161.09 |
|
90 |
9 |
21.97 |
250 |
10 |
64.12 |
|
90 |
11 |
27.4 |
250 |
24.5 |
165 |
|
90 |
12 |
30.18 |
280 |
22.5 |
167.84 |
|
100 |
4 |
10.26 |
300 |
12.5 |
96.33 |
|
100 |
7 |
18.47 |
300 |
25.5 |
204.68 |
|
100 |
10.5 |
28.61 |
300 |
38.5 |
321.38 |
|
100 |
13.5 |
37.79 |
320 |
15.5 |
128.24 |
|
100 |
15 |
42.54 |
320 |
28.5 |
244.93 |
|
110 |
4.5 |
12.71 |
400 |
13 |
132.4 |
|
110 |
8.5 |
24.84 |
|
|
|
|
精密無縫鋼管尺寸公差一覽表 |
||||||
|
內徑尺寸 |
內徑偏差 |
壁厚偏差 |
||||
|
H7 |
H8 |
H9 |
H10 |
H11 |
|
|
|
30 |
0.021 |
0.033 |
0.052 |
0.084 |
0.13 |
±5% |
|
0 |
0 |
0 |
0 |
0 |
||
|
＞30-50 |
0.025 |
0.039 |
0.062 |
0.1 |
0.16 |
|
|
0 |
0 |
0 |
0 |
0 |
||
|
＞50-80 |
0.03 |
0.046 |
0.074 |
0.12 |
0.19 |
|
|
0 |
0 |
0 |
0 |
0 |
||
|
＞80-120 |
0.035 |
0.054 |
0.087 |
0.14 |
0.22 |
|
|
0 |
0 |
0 |
0 |
0 |
||
|
＞120-180 |
0.04 |
0.063 |
0.1 |
0.16 |
0.25 |
|
|
0 |
0 |
0 |
0 |
0 |
||
|
＞180-250 |
0.046 |
0.072 |
0.115 |
0.185 |
0.29 |
|
|
0 |
0 |
0 |
0 |
0 |
||
|
＞250-315 |
0.052 |
0.081 |
0.13 |
0.21 |
0.32 |
|
|
0 |
0 |
0 |
0 |
0 |
||
|
＞315-400 |
0.057 |
0.089 |
0.14 |
0.23 |
0.36 |
|
|
0 |
0 |
0 |
0 |
0 |
||
