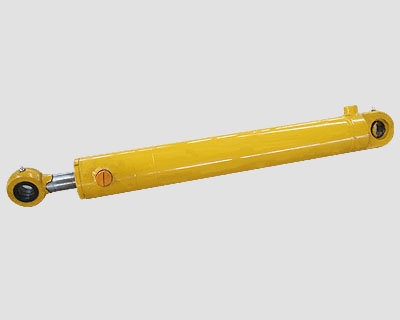

翻斗油缸
|
裝載機常用液壓油缸參數表 |
|||||||
|
配套機械 |
油 缸名 稱 |
型號規格 |
缸徑 |
桿徑 |
行程 |
安裝距 |
額定壓力(Mpa) |
|
ZL60 裝載機 |
翻斗缸 |
HSG.L63/35*485-755 |
63 |
35 |
485 |
755 |
16 |
|
舉升缸 |
HSG.L63/35*485-755 |
63 |
35 |
485 |
755 |
16 |
|
|
轉向缸 |
HSG.L63/35*200-510 |
63 |
35 |
200 |
510 |
16 |
|
|
ZL750 裝載機 |
翻斗缸 |
HSG.L63/35*435-705 |
63 |
35 |
435 |
705 |
16 |
|
舉升缸 |
HSG.L63/35*525-795 |
63 |
35 |
525 |
795 |
16 |
|
|
轉向缸 |
HSG.L63/35*250-520 |
63 |
35 |
250 |
520 |
16 |
|
|
ZL950 裝載機 |
翻斗缸 |
HSG.L80/45*350-922 |
80 |
45 |
350 |
922 |
16 |
|
舉升缸 |
HSG.L80/45*490-842 |
80 |
45 |
490 |
842 |
16 |
|
|
轉向缸 |
HSG.L63/35*250-545 |
63 |
35 |
250 |
545 |
16 |
|
|
ZL950-27 裝載機 |
翻斗缸 |
HSG.L80/45*300-910 |
80 |
45 |
300 |
910 |
16 |
|
舉升缸 |
HSG.L80/45*600-910 |
80 |
45 |
600 |
910 |
16 |
|
|
轉向缸 |
HSG.L63/35*250-545 |
63 |
35 |
250 |
545 |
16 |
|
|
ZL950-28 裝載機 |
翻斗缸 |
HSG.L80/50*310-960 |
80 |
50 |
310 |
960 |
16 |
|
舉升缸 |
HSG.L80/50*630-975 |
80 |
50 |
630 |
975 |
16 |
|
|
轉向缸 |
HSG.L63/35*250-545 |
63 |
35 |
250 |
545 |
16 |
|
|
ZL400-45 裝載機 |
翻斗缸 |
HSG.L80/45*310-1700 |
80 |
45 |
310 |
1700 |
16 |
|
舉升缸 |
HSG.L80/45*1020-1420 |
80 |
45 |
1020 |
1420 |
16 |
|
|
轉向缸 |
HSG.L63/35*250-545 |
63 |
35 |
250 |
545 |
16 |
|
|
ZL200-31 裝載機 |
翻斗缸 |
HSG.L100/63*292-1047 |
100 |
63 |
292 |
1047 |
16 |
|
舉升缸 |
HSG.L80/50*735-1050 |
80 |
50 |
735 |
1050 |
16 |
|
|
轉向缸 |
HSG.L63/35*250-545 |
63 |
35 |
250 |
545 |
16 |
|
|
HT50A滑移裝載機 |
側移缸 |
HSG.L50/28*650-845 |
50 |
28 |
650 |
845 |
16 |
|
深度缸 |
HSG.L50/28*295-534 |
50 |
28 |
295 |
534 |
16 |
|
|
傾斜缸 |
HSG.L50/28*113-324 |
50 |
28 |
113 |
324 |
16 |
|
|
HT60A滑移裝載機 |
翻斗缸 |
HSG.L63/35*460-750 |
63 |
35 |
460 |
750 |
16 |
|
提升缸 |
HSG.L63/35*680-1100 |
63 |
35 |
680 |
1100 |
16 |
|
|
JC35滑移裝載機 |
翻斗缸 |
HSG.L50/32*380-660 |
63 |
35 |
380 |
660 |
21 |
|
臂架缸 |
HSG.L50/32*660-950 |
63 |
35 |
660 |
950 |
21 |
|
|
JC60滑移裝載機 |
翻斗缸 |
HSG.L63/35*410-790 |
63 |
35 |
460 |
750 |
16 |
|
臂架缸 |
HSG.L63/35*680-1095 |
63 |
35 |
680 |
1100 |
16 |
|
|
JC70B滑移裝載機 |
翻斗缸 |
HSG.L63/35*460-750 |
63 |
35 |
485 |
760 |
16 |
|
臂架缸 |
HSG.L63/35*680-1100 |
63 |
35 |
625 |
900 |
16 |
|
|
GM1605滑移裝載機 |
翻斗缸 |
HSG.L70/35*495-805 |
70 |
35 |
495 |
805 |
16 |
|
臂架缸 |
HSG.L80/50*638-970 |
80 |
50 |
638 |
970 |
16 |
|
